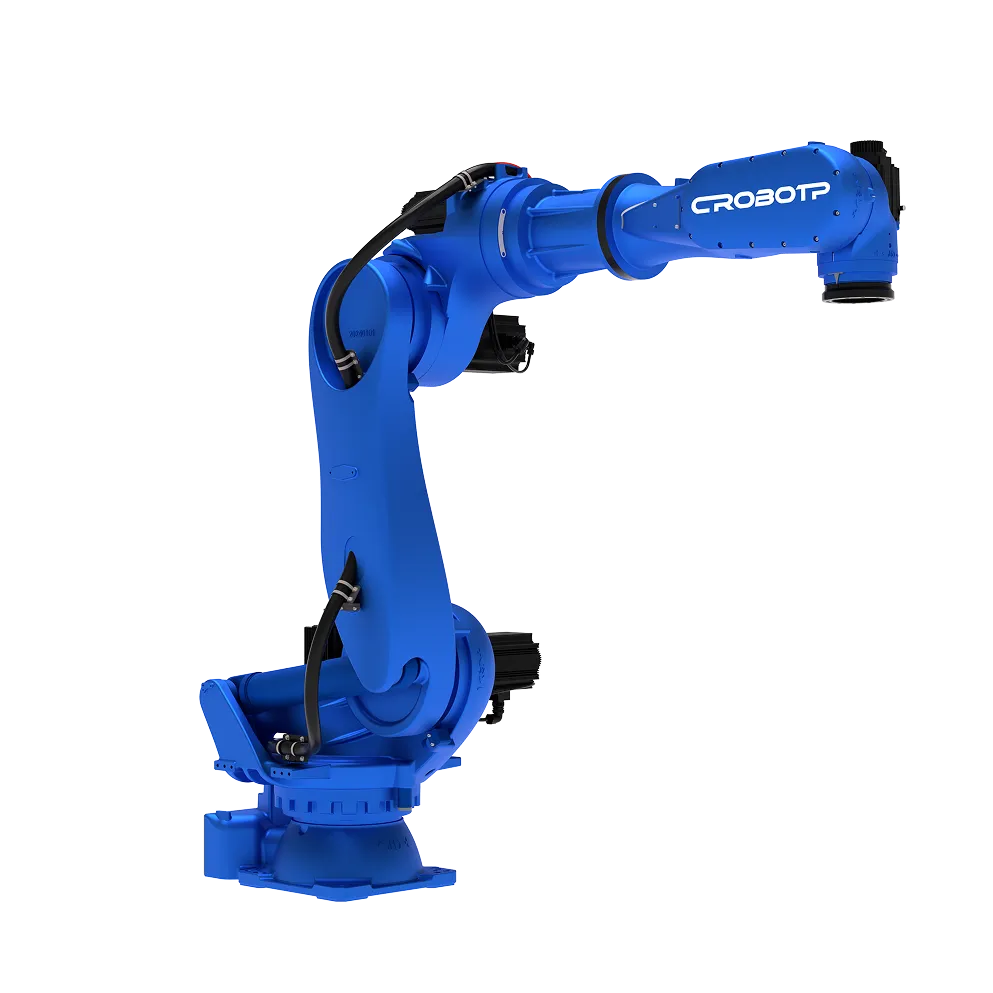

Industrial robot arm RA32-280 is an industrial six-axis handling robot: 6 axes, 280 kg payload, 3107 mm reach, ±0.08 mm repeatability. It is built for handling, loading/unloading parts, milling, polishing, cutting and spot welding and other repetitive work where cycle time and consistency decide the cost per part.
Size it by the two constraints that cannot be worked around: the mass at the wrist — part, gripper, cabling and any sensor together — and the furthest point the tool must reach at full extension. Everything else follows from those.
Six axes let the tool approach from any angle — reaching into a machine, tilting a part to clear a fixture, placing at an angle. Where the approach is always vertical and the part flat, a SCARA or a four-axis palletizer does the job; for stacking, a four-axis palletizing robot is faster.
