Description

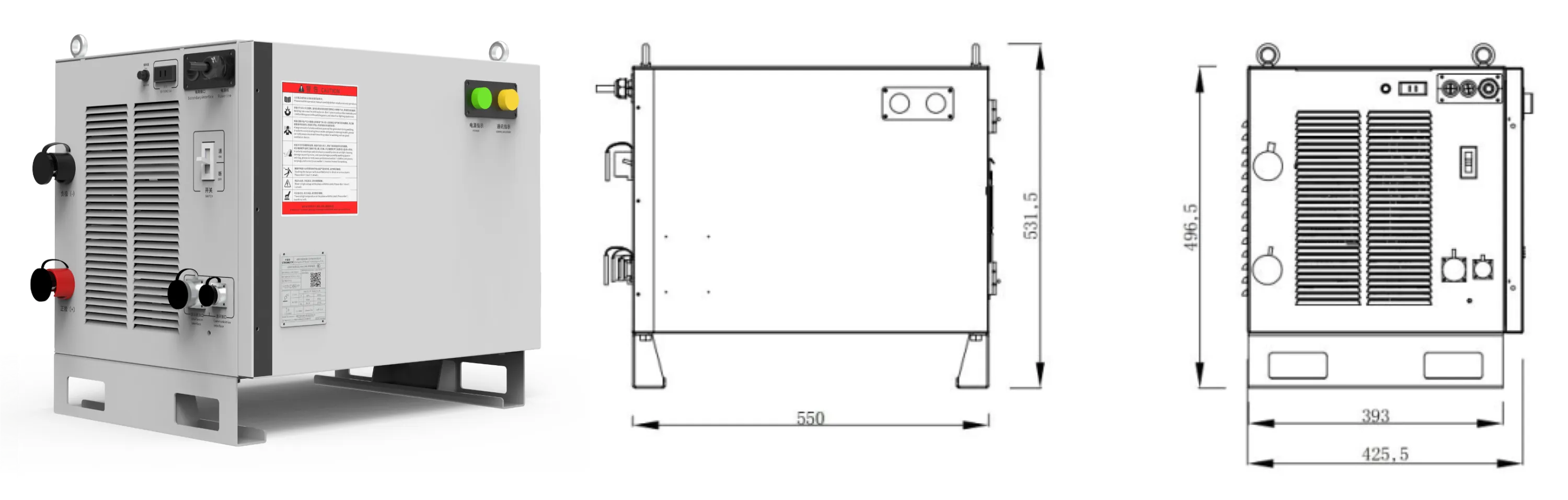

Welding power source DS350-L is designed for use in robotic CO₂ / MAG / MIG arc welding cells. The power source is based on a fully digital DC inverter IGBT platform and provides stable arc formation over a wide welding current range from 30 to 350 A.
The equipment is designed for 380 V ±10% three-phase power supply (50/60 Hz) and has a rated input power of 15 kW at a 60% duty cycle. The output voltage range of 12–36 V and wire feed speed of 1.0–18 m/min allow the source to be adapted for different welding wire diameters and welding modes.
DS350-L operates in CO₂ short-arc, MAG/MIG short-arc and single-pulse modes, providing stable arc burning and controlled metal transfer when welding carbon and stainless steels. Welding wire feed is controlled in a closed loop using a high-precision photoelectric encoder.
The source is equipped with a CAN interface for integration with an industrial robot; welding current and voltage values are displayed on the teach pendant. Current and voltage waveform parameters, as well as shielding gas pre-flow and post-flow time in the 0–10 s range, are configured through the control system interface.
The equipment is designed for 380 V ±10% three-phase power supply (50/60 Hz) and has a rated input power of 23 kW at a 100% duty cycle, allowing the source to be used in continuous production processes without reducing parameters. The output voltage range of 15.5–39 V and wire feed speed of 1.0–18 m/min provide adaptation to different welding wire diameters and joint types.
The source is equipped with a CAN interface for integration with an industrial robot; welding current and voltage values are displayed on the teach pendant. Current and voltage waveform setup, as well as shielding gas pre-flow and post-flow time in the 0–10 s range, is performed through the control system interface.
POWER SOURCE TECHNICAL SPECIFICATIONS
| Model | DS350-L | DS500-P |
| Description | Fully digital DC inverter IGBT welding power source for CO₂ / MAG / MIG, multifunctional | Fully digital DC inverter IGBT welding power source for CO₂ / MAG / MIG, multifunctional |
| Weight | ≈ 56 kg | ≈ 62 kg |
| Power supply | Three-phase, 380 V ±10 %, 50/60 Hz | Three-phase, 380 V ±10 %, 50/60 Hz |
| Rated input power | 18 kVA / 15 kW | 26.5 kVA / 23 kW |
| Rated output current | 30–350 A (depends from diameter welding wire) | 30–500 A (depends from diameter welding wire) |
| Rated output voltage | 12–36 V (depends from diameter welding wire) | 15.5–39 V (depends from diameter welding wire) |
| Rated duty cycle | 60 % (10 minutes - one cycle) | 100 % (10 minutes - one cycle) |
| Weldable materials | Carbon steel, stainless steel | Carbon steel, stainless steel |
| Wire feed speed | 1.0–18 m/min | 1.0–18 m/min |
| Shielding gas pre-flow time | 0–10 s (set from the teach pendant) | 0–10 s (set from the teach pendant) |
| Post-weld gas flow time | 0–10 s (set from the teach pendant) | 0–10 s (set from the teach pendant) |
| Robot interface | CAN-bus | CAN-bus |
| Gas regulator power supply | 36 V / 6 A (when not in use, the welding source must be switched off) | 36 V / 6 A (when not in use, the welding source must be switched off) |
| Welding voltage setting method | Synergic / separate (selected via teach pendant) | Synergic / separate (selected via teach pendant) |
| User files | Up to 10 files | Up to 10 files |
| Protection rating | IP21S | IP21S |
