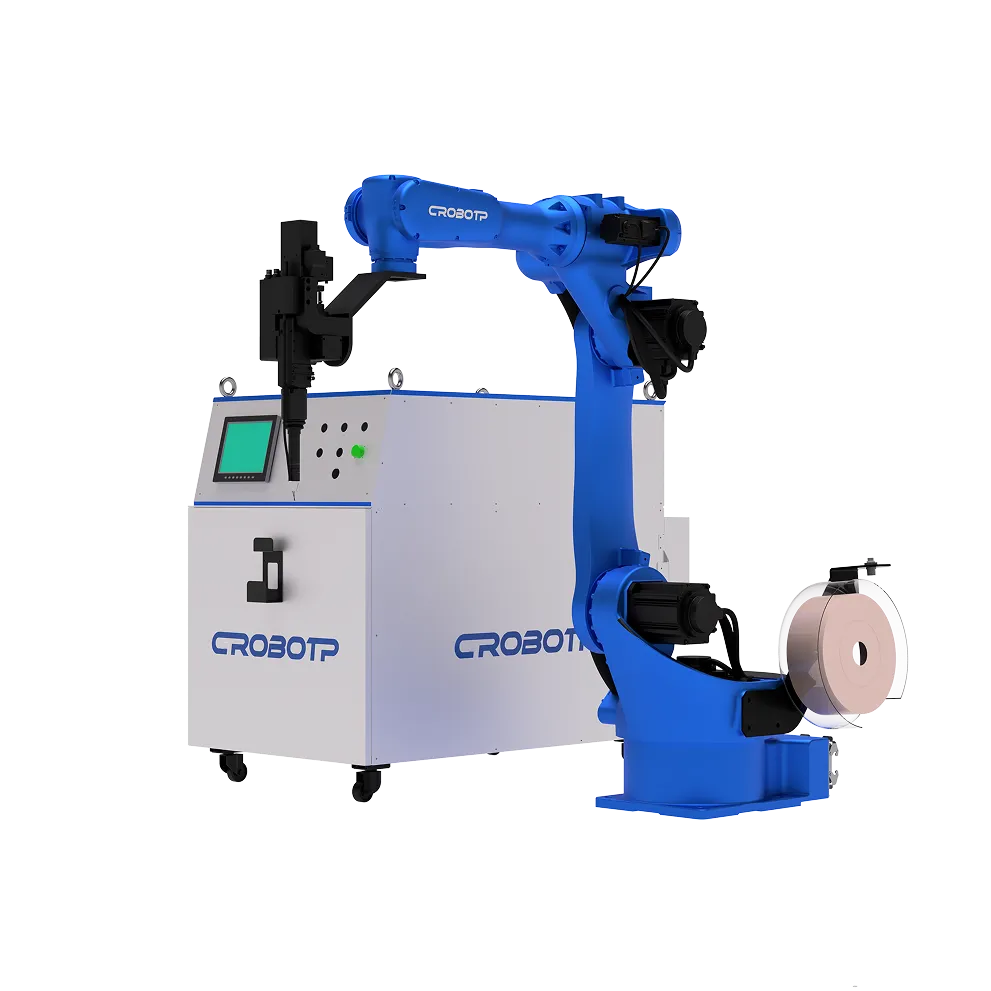

Laser welding and cutting robot RA15-12-J

Teach pendant

5.6-inch TFT-LCD touchscreen, emergency stop button, mode selector, safety key (deadman switch), quick access keys

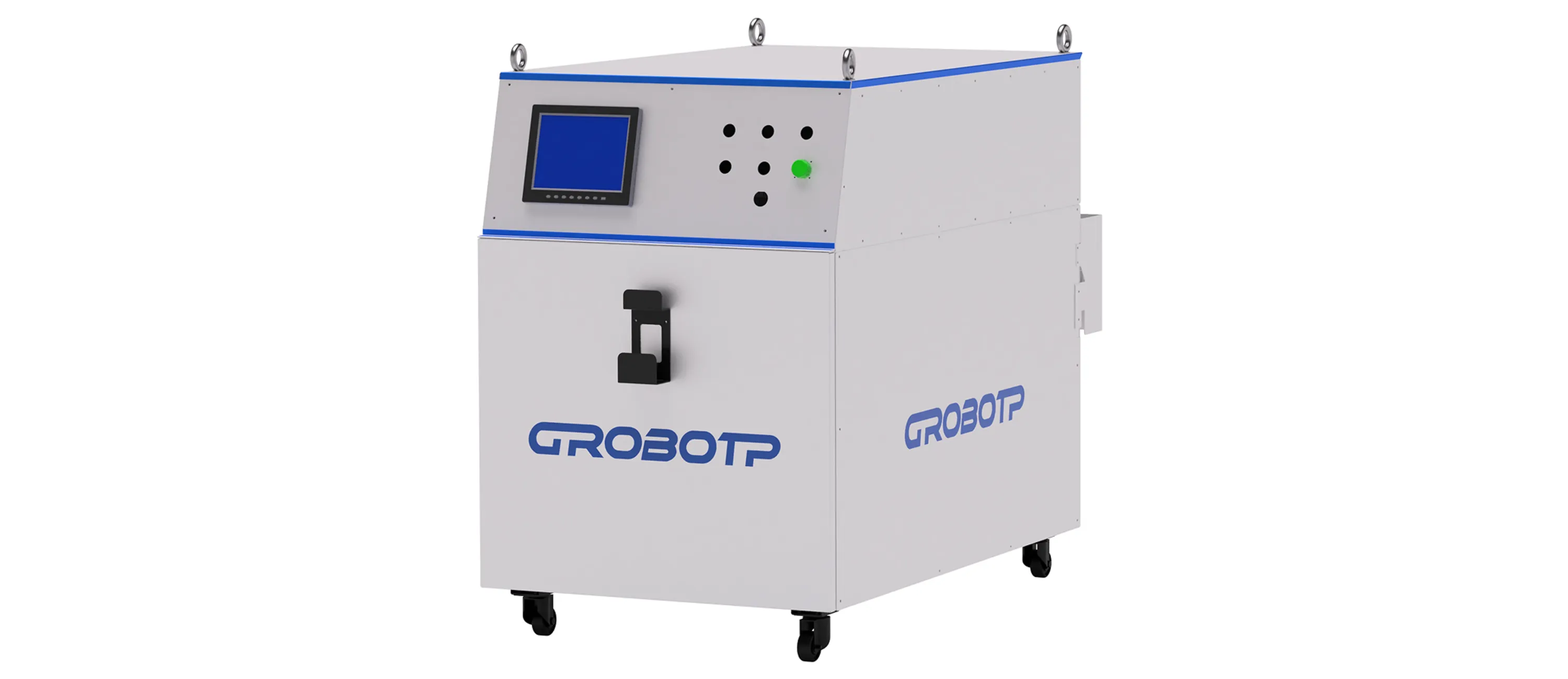

Dimensions / Weight

647 mm (W) × 890 mm (H) × 1121 mm (D); weight — 240 kg

Protection level

Upper section (IP54): fan + filter

Chiller cooling

Air

Environmental conditions

Storage temperature: from 0 °C to +65 °C



Operating temperature: from 0 °C to +40 °C



Relative humidity: from 20 % to 85 % (without condensation)



Maximum altitude above sea level: not more than 2000 m

Power supply

Three-phase AC 380 V ±10%, 50/60 Hz, recommended power 30 kVA, grounding required

Cables

Power cable — 5 m; connecting cable — 5 m as standard.

System configuration

RAM: 2 GB DDR4L 1333 MHz



Storage: 8 GB eMMC

Hardware interfaces

Encoder interface: 2 signal channels; encoder power supply: 5 V







RS485, CAN 2.0

Safety system

Collision sensor

Communication protocols

Modbus RTU, Modbus TCP

Operating mode

Teach, Play, Remote

Supported motion types

Point-to-point, linear interpolation, circular interpolation, gate motion

Number of controlled axes

6 robot axes + 2 external axes

Laser source

Series Raycus RFL-C

Chiller

Series QUANG QGWR-WDR-1225T

Laser head connection kit

Standard length: 5 meters. Fire-resistant version.

Wire feeder control cable



Additional connecting elements

Parameter

QGWR-3000WDR-1226T



(for 3 kW lasers)

QGWR-2000WDR-1226T



(for 2 kW lasers)

QGWR-1500WDR-1226T



(for 1.5 kW lasers)

Power supply

Single-phase, 220 V / 60 Hz

Cooling capacity

6 kW

4.2 kW

3 kW

Compressor power

1.2 kW

Pump power

0.25 kW

Rated current

13 A

9 A

6.5 A

Max. pump head

30 m

Pump flow rate

30 l/min

Operating temperature

-5 ~ 45 ℃

Temperature control accuracy

±1℃

Refrigerant

R410a, 450 g

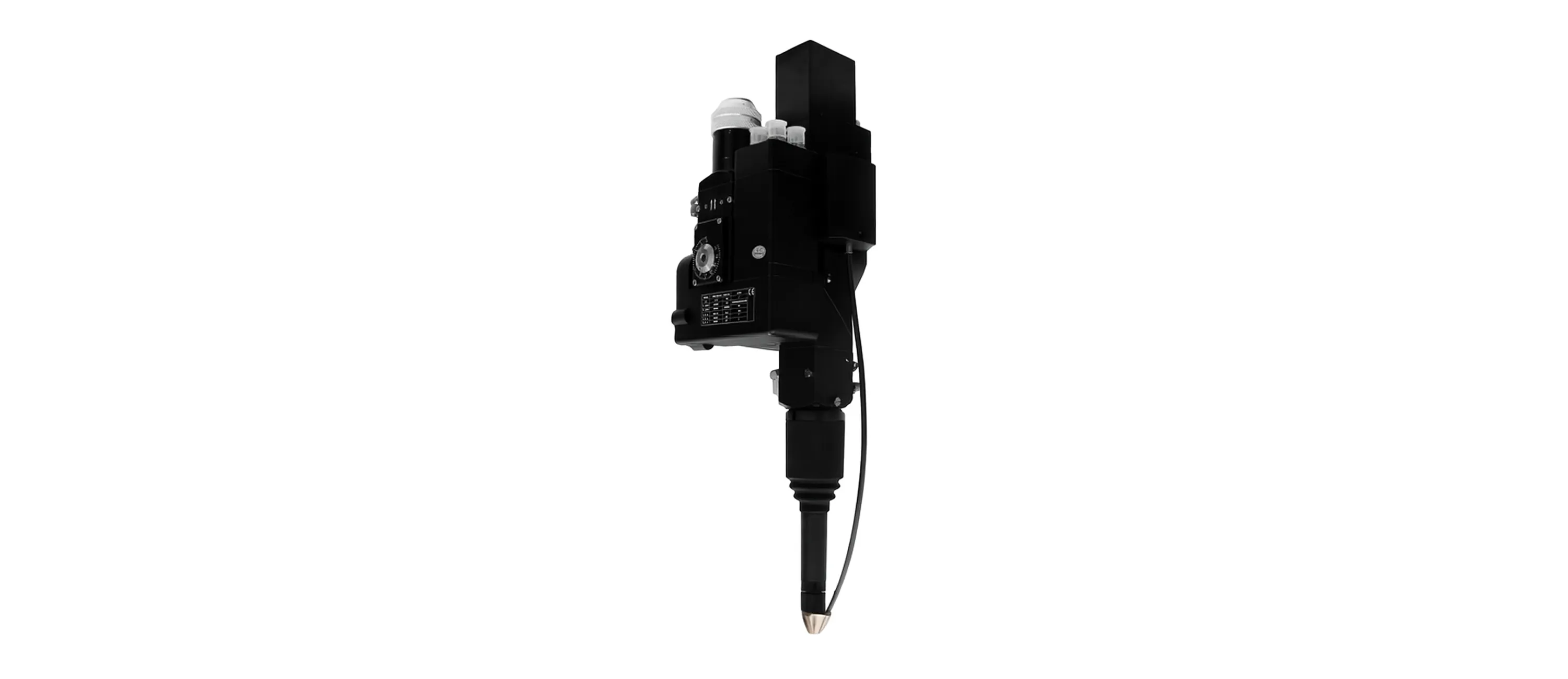

Fibre connector

QBH

Supported laser power

1500–4000 W

Collimating lens focal length

100 mm

Focusing lens focal length

250 / 300 mm

Focus spot weaving range

X: 0–5 mm / Y: 0–5 mm

System protection

Coaxial protection and collision protection

Visual monitoring method

Coaxial camera (CCD)

Laser source cooling

Water cooling

Laser beam oscillation speed

<4000 mm/s

Wire diameter

1.0 / 1.2 / 1.6 mm

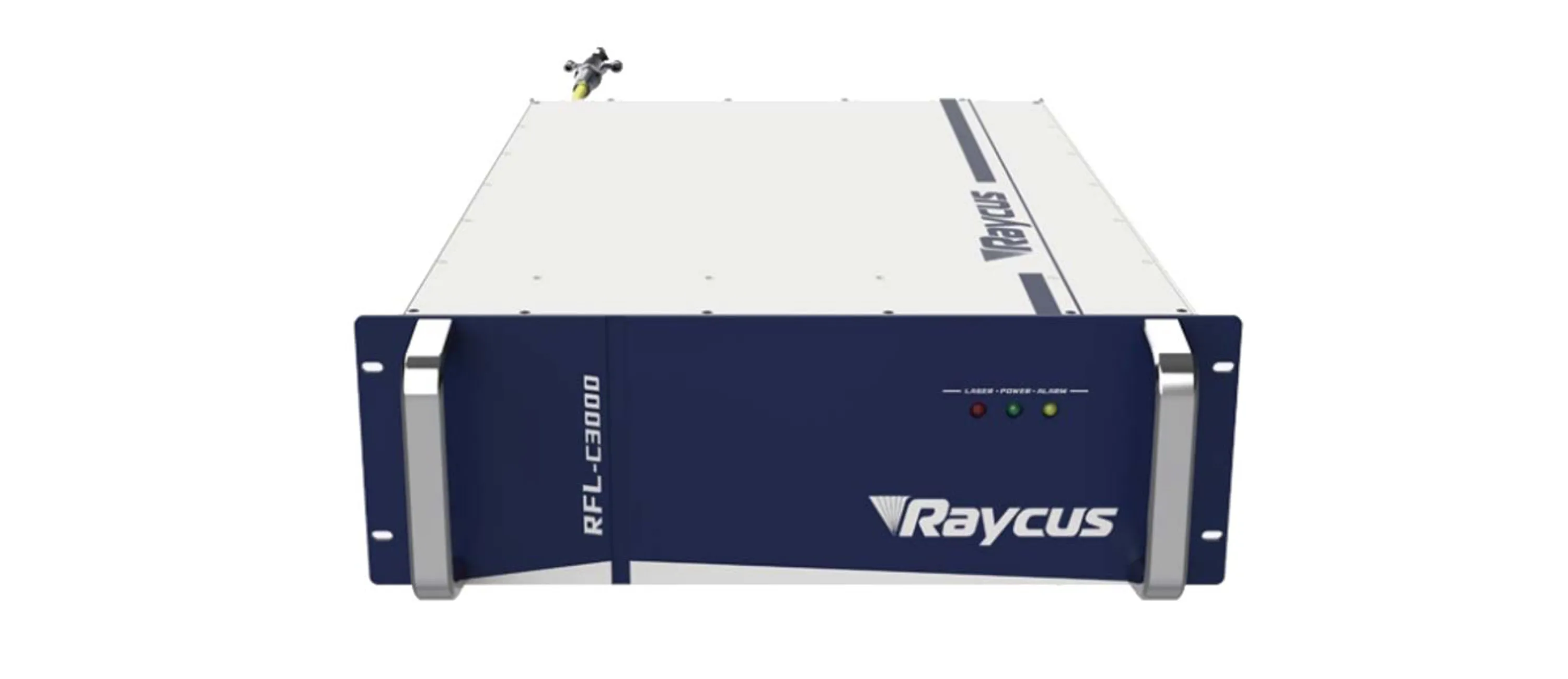

Parameter

RFL-C3000H

RFL-C025H

RFL-C020H

Rated output power

3000 W

2000 W

1500 W

Polarization type

Random

Output power adjustment range

10-100%

Wavelength

1080 ±5 nm

Output power instability

±1.5 %

±1.0 %

±1.0 %

Modulation frequency

1–5,000 Hz

1–20,000 Hz

1–20,000 Hz

Red guide beam power

1–1.5 mW

0.5–1 mW

0.5–1 mW

Optical output

Beam quality (BPP)

1.0 – 1.8 mm·mrad

1.8 mm·mrad

1.8 mm·mrad

Fibre core diameter

50 µm

25 µm

25 µm

Numerical aperture (NA)

0.12

0.11

0.11

Fibre length

10 m

Electrical specifications

Power supply

380 V ±10%, 50/60 Hz

220 V ±10%, 50/60 Hz

Maximum power consumption

10,000 W

6,000 W

4,500 W

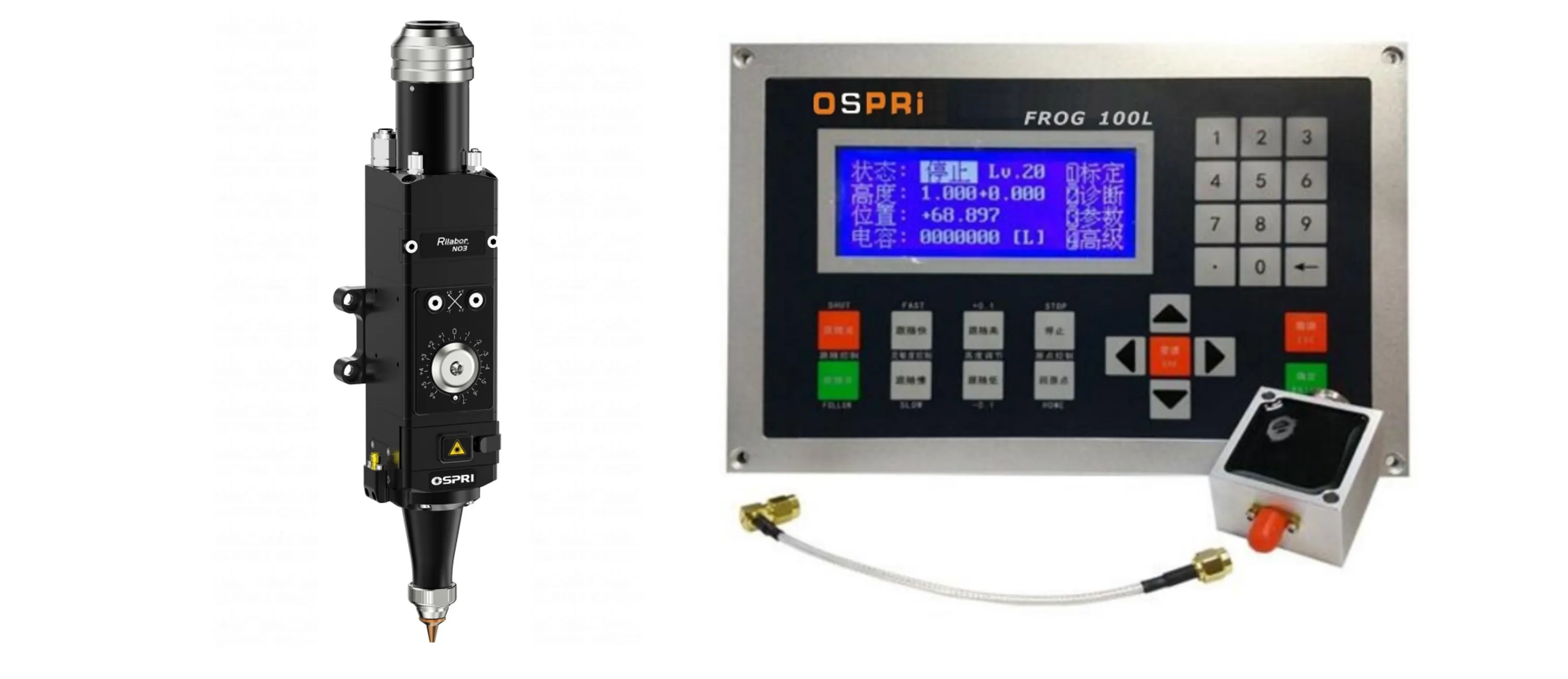

Fibre connector

QBH

Supported laser power

1500–3000 W

Collimating lens focal length

100 mm

Focusing lens focal length

125 / 150 mm

Focal distance adjustment range

–7 mm ~ +6 mm

Focus center offset range

±1 mm

Maximum assist gas pressure

≤3 MPa

Autofocus refresh rate

1000 Hz

Static measurement accuracy

0.001 mm

Dynamic response accuracy

0.05 mm

Height tracking adjustment range

0–15 mm

Maximum permissible Z-axis acceleration

2G

Parameter

RFL-C3000S

RFL-C025

RFL-C020

Rated output power

3000 W

2000 W

1500 W

Polarization type

Random

Output power adjustment range

10-100%

Wavelength

1080 ±5 nm

Output power instability

±1.5 %

±1.0 %

±1.0 %

Modulation frequency

1–5,000 Hz

1–5,000 Hz

1–5,000 Hz

Red guide beam power

1–1.5 mW

0.5–1 mW

0.5–1 mW

Optical output

Beam quality (BPP)

1.4 – 2.0 mm·mrad

1.8 mm·mrad

1.8 mm·mrad

Fibre core diameter

50 µm

50 µm

50 µm

Numerical aperture (NA)

0.12

0.16

0.16

Fibre length

20 m

Electrical specifications

Power supply

380 V ±10%, 50/60 Hz

220 V ±10%, 50/60 Hz

Maximum power consumption

8,300 W

6,500 W

5,400 W
